Motorola edge 40 neo

codename: manaus

Guides

Special boot modes

  • Recovery: With the device powered off, hold Volume Down + Power, then select “Recovery mode” using Volume keys.
  • Bootloader/Fastboot/Download: With the device powered off, hold Volume Down + Power. Keep holding both buttons until the text “FastBoot Mode” appears on the screen, then release.

Known quirks

Find help online

You can find assistance with LineageOS on our subreddit, on our Discord server, or in #LineageOS on Libera.Chat.

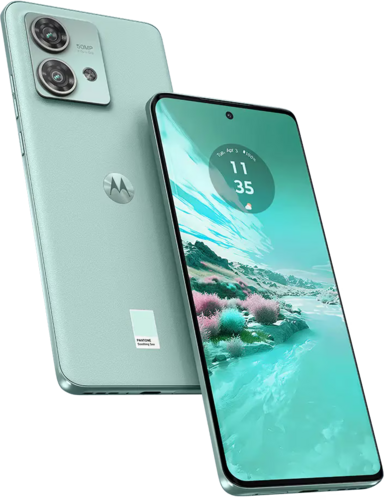

Motorola edge 40 neo (manaus)
Released September 2023
Specifications
SoC Mediatek Dimensity 7030
RAM 8/12 GB LPDDR5X
CPU Octa-core Cortex-A78 & Cortex-A55
2 x 2.5 GHz + 6 x 2.0 GHz
Architecture arm64
GPU ARM Mali-G610 MC3
Network
  • 2G GSM
  • 2G CDMA
  • 3G UMTS
  • 4G LTE
  • 5G NR
Storage 128/256 GB uMCP
Screen 6.55 in (166.37 mm)
1080x2400 (401 PPI)
P-OLED (max. 144 Hz)
Bluetooth 5.4 with A2DP
Wi-Fi 802.11 a/b/g/n/ac/ax
Peripherals
  • A-GPS
  • Accelerometer
  • Compass
  • Dual SIM
  • eSIM
  • Fingerprint reader
  • Galileo
  • GLONASS
  • GPS
  • QZSS
  • Gyroscope
  • Light sensor
  • NFC
  • Proximity sensor
  • Stereo speakers
  • USB OTG
Cameras 3
  • 50 MP (Wide), LED flash
  • 13 MP (Ultrawide), LED flash
  • 32 MP (Front), No flash
Dimensions 159.6 mm (6.28 in) (h)
72 mm (2.83 in) (w)
7.9 mm (0.31 in) (d)
Battery Non-removable Li-Po 5000 mAh
LineageOS info
Kernel version
Supported models
Previously supported versions
  • 23.2 (Android 16)
